Subrack Divider Kit
2 x 3 U – 42 HP and 6 U – 40 HP
The divider separates a 6 U subrack into a field for 6 U PCB’s and 2 fields of 3 U.
Finish: colorless chromated
Delivery:
1 double front profile
2xVE1 43 HP chromated
1 double rear profile
2xHK 43 HP anodized
2 divider strips

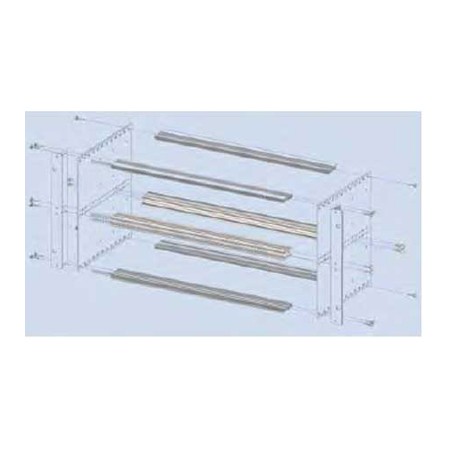

Assembly: Mounting parts
Subrack Divider Kit 2 x 3 U – 42 HP and 6 U – 40 HP
Description
Positioning note:
For optimum use of available space in the subrack, PCB’s of 6 U should be mounted left, and the 3 U on the right.
In this case the dividing strip requires only 1 HP, otherwise 2 HP for the necessary air and leakage paths.
